"The Sickness" - A Poor Mans Camaro Project
Permalink



1987 Camaro LT. Started out as a parts car for my sister's 89 RS, and now i'm going to completely go through it and make it something special.

PLANS:

EXTERIOR:

Do all body work

Z28 Ground Effects with Custom SS Rocker Emblems

4" Cowl Hood (Goodmark Steel)

2002 Toyota Echo Indigo Ink Pearl Paint

Painted Replica "SS" Hockey Stripes in Pearl White

Suspension:

Custom Fabbed "Mini Ladder Bars" (ditching the Torque Arm)

Spohn Adjustable Panhard Bar

Ford Explorer 8.8 Rear (4.10 gears, disk brakes factory)

Custom Fabbed Subframe Connectors

Poly Bushings everywhere

BMR Wonderbar

Stock Sway bars with Poly Bushings/Links

Moroso Trick Front Springs

Competition Engineering Rear Coilovers with 150# Springs

Competition Engineering Drag Struts

Ausie Locker

Motor:

400c.i.d Small Block 11.8:1 Compression

AFR 227 Heads (2.1/1.6 valves, 65cc Chambers)

.100 Dome Pistons

5.7" Rods

Super Victor Intake

800 Dominator Carb

Hooker 2210 Supercomp Longtubes

Magnaflow Bullet Mufflers with Side exit exhaust (2.5" pipes)

A Cam of some sort

Trans:

Built 700R4 with B&M Console Mega Shifter and Stall Converter

Interior:

Tilt Column

Grant Steering Wheel

Autometer Sport Comp Guages

Stock Replacement (Black Plastic)

New Carpet

New Headliner/Visors

Stock Rear Cloth Seats

99 Grand Prix GTP Black Leather Front Seats (Driver's Heated, Power, w/ Air Bolsters)

Competition Engineering 8 Point Cage

Wheels/Tires:

Front -15x7 Summit Fast Fives - 215/65-15

Rear -  15x10 Summit Fast Fives - 295/50-15



-- Edited by LeadFootedRacer on Wednesday 11th of May 2011 10:35:07 PM

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink

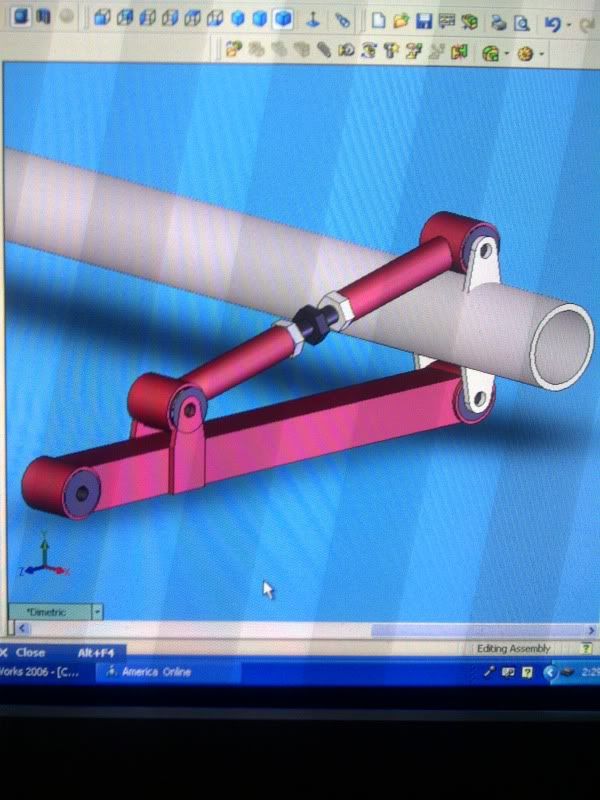

Here is a PRELIMINARY sketch of the rear ladder bar design.



__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink

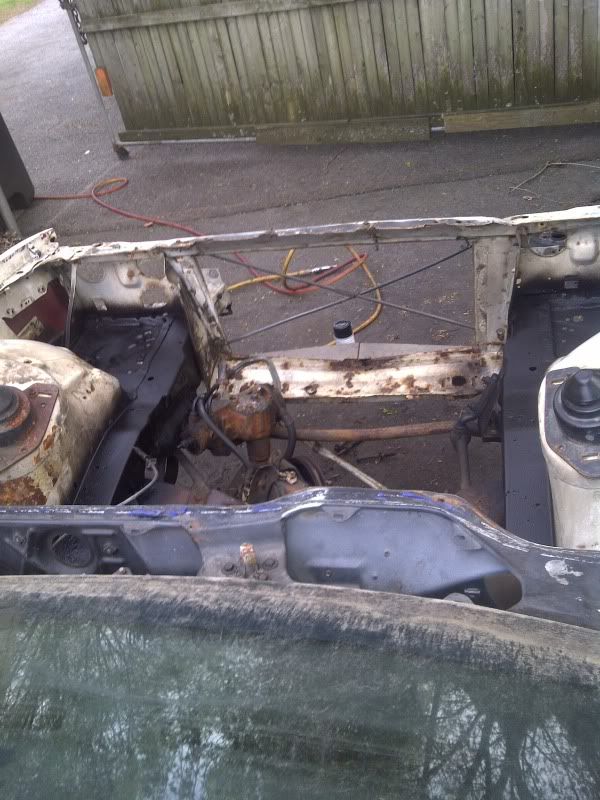

so far i've pulled the motor/trans. stripped the underhood wiring, the whole front clip came off to be replaced (picked up some killer used parts), and pulled everything off the firewall. i've also picked up the rear, stripped all the bracketry off of it, and picked up some used lakewood rear control arms to start my ladder bar project.

its a slow moving project, but when its done, i have high hopes for it.

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



THIS IS HOME

Status: Offline
Posts: 3213
Date:
Permalink


Nice,Lets see pictures of the work as you go.

__________________


BDJ406

Status: Offline
Posts: 1449
Date:
Permalink


thats a nice laddar bar set up

__________________


Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


the new ladder bar setup will be 1 1/4" steel rod, with LH and RH thread heim joints... more cost effective that way.

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Senior Member

Status: Offline
Posts: 643
Date:
Permalink


PICS WOULD BE COOL!

__________________


Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


There will be pics, when there is progress. Its too famn cold outside to get anything done right now.

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Member

Status: Offline
Posts: 23
Date:
Permalink


You need to be welding some new floors into my carlowrider

__________________


Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


Adam, we discussed this already... Let me know.

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


ordered 24' of 2x2x.083" boxed tubing, a competition engineering 8pt roll cage, and 2 2008 Impala SS door emblems... cant wait for the snow to melt!!

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Veteran Member

Status: Offline
Posts: 477
Date:
Permalink


Nice list NOW GETTER DONE. 3gears3gears3gears3gears3gears3gears3gears3gearsWe like tire smoke........

__________________

G-DOG



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


still no real progress... sorted out the underhood wiring harness... trimmed off all the extra nonsense...

also picked up the paint and clear... just need to get some blue tinted sealer, the hood, and a couple gfx pieces.

this should be a very eventful and productive summer. i'll get pics up, once i take them

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


i almost forgot the most important mod!

I have a BurnoutBox.Net sticker for the rear window... that will be going on this summer too.

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



THIS IS HOME

Status: Offline
Posts: 3213
Date:
Permalink


LeadFootedRacer wrote:

i almost forgot the most important mod!

I have a BurnoutBox.Net sticker for the rear window... that will be going on this summer too.







bret

__________________


Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


picked up the BMR Wonderbar, the GFX parts i was missing, and a gallon of this blue:



__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Veteran Member

Status: Offline
Posts: 477
Date:
Permalink


sweet

__________________

G-DOG



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


holy crap, didnt realize the picture was so big... not a bad quality shot for a cell phone...

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Senior Member

Status: Offline
Posts: 813
Date:
Permalink


i like the color nice job so far

__________________
soon to be a member of


Veteran Member

Status: Offline
Posts: 213
Date:
Permalink


Nice color..It'll really look good in the sun.biggrin



__________________


ZOHAN

Status: Offline
Posts: 1328
Date:
Permalink


I LIKE THAT COLOR BLUE,ITS GANA LOOK SICK!!

tim



__________________
If I offended you, I'm happy!


Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


got the holes in the firewall from the heater boxed covered up and seam sealed. Engine compartment almost ready for paint.

also got the driver's seat all modified and mounted so i can start putting in my subframe connectors and roll cage. its out of a GTP. black leather, power, heated bottom and back, air powered bolsters too!

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Veteran Member

Status: Offline
Posts: 233
Date:
Permalink


This is awesome... Can't wait to see it. I have an 86 camaro.

__________________


Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


patients is key my friend. this thing isn't going to be on the road for another 24 months.

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Senior Member

Status: Offline
Posts: 675
Date:
Permalink


im using kyb for shocks/struts. there really good and very afordable. for sfc i went with comp eng bolt ons, but im having mine welded in also. i have some black plastics if you need some. just let me know what parts you need. and a 3k stall might be a nice one. not to crazy and not to small. i also have a grey grant steering wheel with hub kit. just needs the horn wire. let me know if you need anything



__________________



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


the rear will have competition engineering coil overs with 150lb springs.

i'm thinking of going to with competition engineering drag struts with moroso trick drag springs up front.

the subframe connectors will be 2 1/4x2 1/4x.125 box tubing, using the competition engineering tranny cross-member brackets. (bought the weld in connectors a few years back for a different project, but never used them... cut the tubing off for something else.)

as far as the plastic goes, i have to actually inventory what i actually have in stock.

i need to update my first post with my plans... things have changed a little bit.

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Senior Member

Status: Offline
Posts: 675
Date:
Permalink


ok, let me know if you need anything 3rd gen related. i might have some extra parts left over



__________________



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


going to the swap meet this weekend, hoping to grab some items needed. if i come back empty handed, i will let you know


__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


updated first post

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


undercoated the frame rails and plugged up the heater box holes in the firewall.













__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Veteran Member

Status: Offline
Posts: 477
Date:
Permalink


Keep it up you'll be done before you know it............................

__________________

G-DOG



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


Gutted the entire interior, sorted the parts and threw away a bunch of garbage this weekend.

Also started on the custom fabbed subframe connectors.

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink





__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


a few pics of today's progress...
























__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink

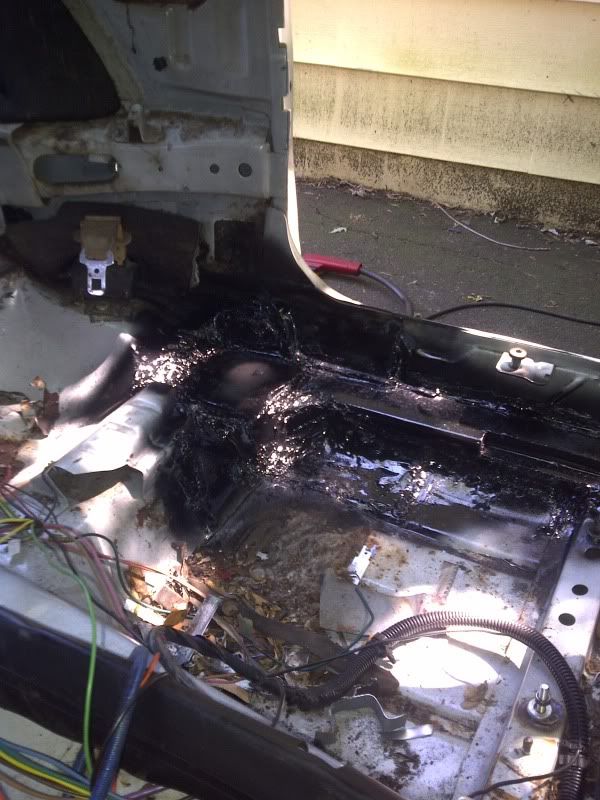

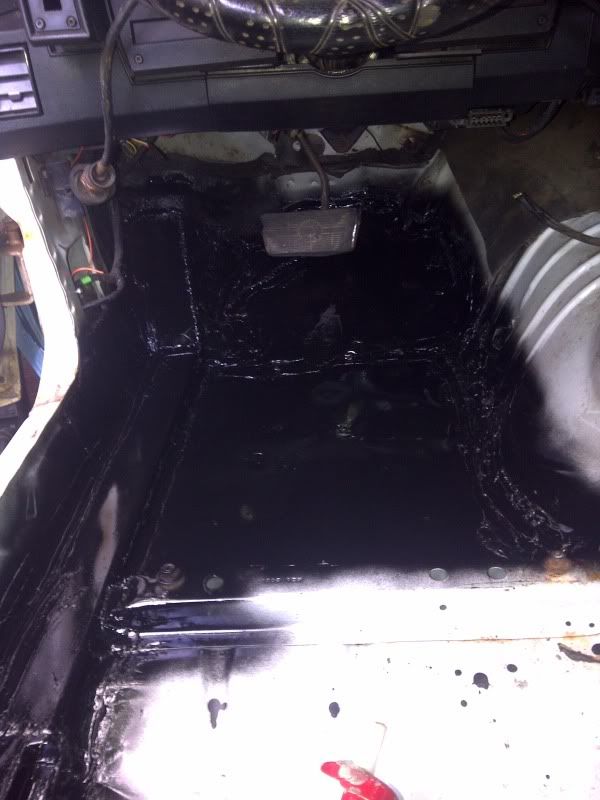

i got alot more work done, but forgot to take pics... i will be working more on it tomorrow, will get pics then.



and yes, i know, the floor pan patch i put in is beat to sin... who cares? it fits, it covers the hole, it gets undercoated from underneath, and carpet on top.

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink

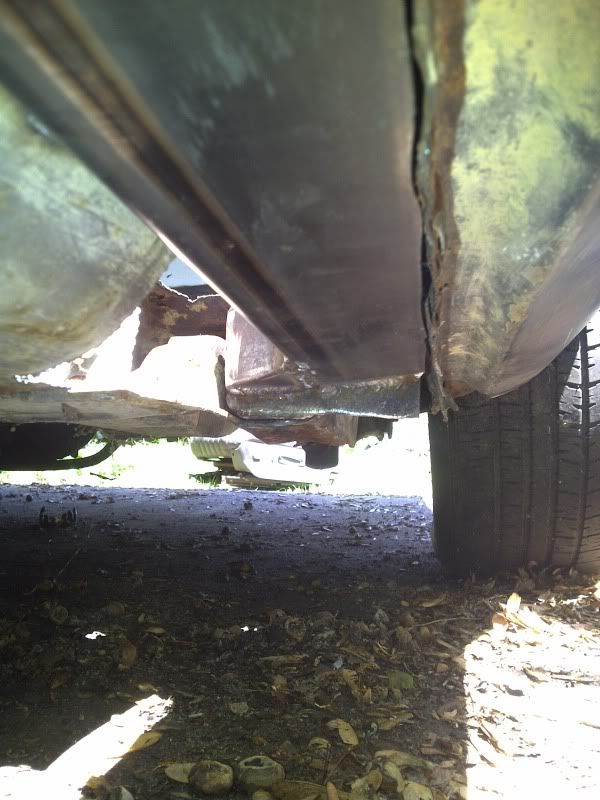

the worst part? i called BOTH competition engineering AND Summit to try and find out where the main hoop mounting plates are supposed to go. The BOTH said on the floor between the door jamb and the rear seat... i couldnt believe it. if you look, you can see that the floor in that area is floating 2" above anything with structural strength. freakin retards.



Here is a picture showing that relationship






__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


Today's Progress (6/5/11):
























Had a few minutes to kill, this is my rearend that i plan on using and some mock up wheels/tires from something else.






__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



FOODSTAMPS

Status: Offline
Posts: 556
Date:
Permalink


looking good ,,,keep it up

__________________

fast bitch



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


FedEx man dropped off 16 feet of 2x3 boxed tubing today... gotta pick up a spare 2lb welding spool, fill the backup argon tank, a couple sheets of sheet metal, and hopefully this floor/sub frame connectors will be done in the next 2 weeks.

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


started building the subrame connector for the right side today...  the plan for the weekend is to have the subframe connectors complete, the roll cage's main hoop tacked into place, locate the mounting points for the rest of the cage and mount the plates, and try and get some of the floor pans done.



i did, however, get this done today:






__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


got the nose test fit... still wishing i had a real hood.






__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Senior Member

Status: Offline
Posts: 990
Date:
Permalink


Just build a big ugly one. Seems to be the thing to do these days. Progress looks good though.

__________________
Imports are like tampons every pussy has one!


Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


got a bit of work done this weekend... restored an unmatched pair of tail lights, and got 3 out of 4 sections of the floor pans done... before you laugh about the messy seam sealer, remember... you can't see it when the carpet covers it... biggrin


















Also had to invert the corner on the subframe connector. i mounted the seat before the connectors were in. this one hit, and now it does not.






__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



FOODSTAMPS

Status: Offline
Posts: 556
Date:
Permalink


good job

__________________

fast bitch



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


Got some more work done today...



pulled this out:




__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Senior Member

Status: Offline
Posts: 675
Date:
Permalink


what are you using for front struts? i have a pair of brand new monroe ones if you need some



__________________



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


i really have my heart set on some competition engineering ones, but a few people said they dont do well on the street.

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Senior Member

Status: Offline
Posts: 675
Date:
Permalink


best bang for the buck are kyb ones. ive had them on 3 camaros. awesome even with lowered camaros



__________________



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


Just ordered some parts...

2 of these:
http://www.summitracing.com/parts/ENS-3-1116R/

1 of these:
http://www.summitracing.com/parts/ENS-3-3157R/

2 of these:
http://www.summitracing.com/parts/MOG-K6145T/

1 of these:
http://www.summitracing.com/parts/MOR-47210/


Hoping to order the Lakewood 70/30 struts and UMI Tie Rod Adjusting Sleeves in the next week or two.


__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys



Hot Wheels

Status: Offline
Posts: 202
Date:
Permalink


parts came in yesterday, hoping to have the k member stripped, painted, motor mounts installed, and back in the car by monday... would also (going out on a limb here) like to have the control arms sandblasted, the bushings and ball joints changed, painted, and hanging in place too... we'll see what happens. been pretty tied up all week with "side" work, which has been digging into my play time

__________________

1987 Camaro - 400cid SBC - 700R4 - 4.10 8.8" - 8pt Cage

Pictures/Progress:

Burnoutbox.net / Fbody.com / NECamaro-Firebird / Nastyfbodys

1 2  >  Last»  | Page of 2  sorted by

Quick Reply

Please log in to post quick replies.

Tweet this page Post to Digg Post to Del.icio.us
Chatbox
Please log in to join the chat!
Live video chat by Ustream
